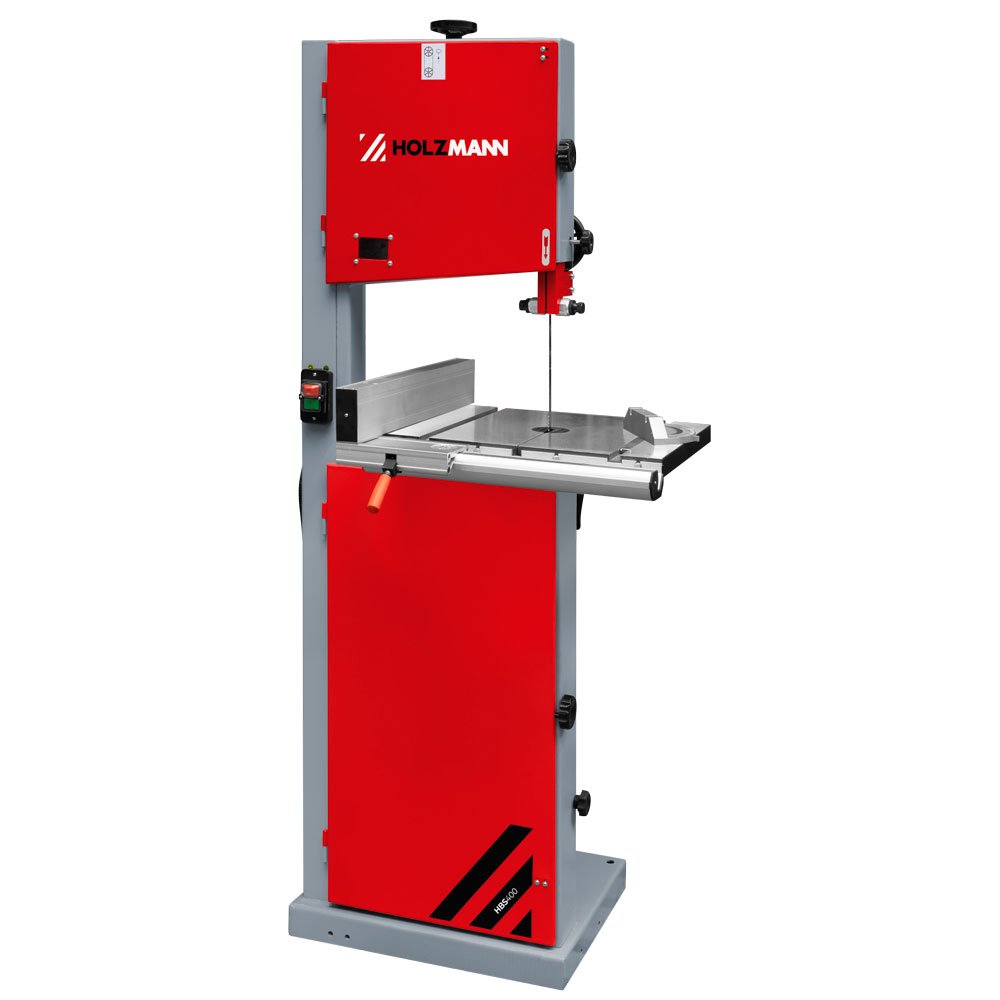

HOLZMANN HBS400 Wood Bandsaw – 220 mm Cutting Height

HOLZMANN HBS400 Wood Bandsaw – 220 mm Cutting Height

The HOLZMANN HBS400 is a 127 kg floor-standing wood bandsaw with 220 mm cutting height at 90°, 380 mm throat depth and 400 mm rubber-coated cast-iron flywheels running 2950 mm blades from 6 to 20 mm wide. The HBS400 has a 500 x 400 mm table at 990 mm height tilting 0° to 45°, a Ø100 mm extraction port, and is available in 230V and 400V versions.

Cutting Height
220 mm
Cutting Width
240 mm
Table Size
500 x 400 mm
Table Height
990 mm
  • New
  • To order
Price To order

Price of the HBS400 is driven by the voltage version (230V or 400V), the saw band package in the 6-20 mm range, the extractor and Ø100 mm hose ordered with it, freight and customs on a 137 kg crate from Austria, and whether delivery to the workshop floor is included.

Request price
+995 577 44 44 34
Irakli Sales manager Mon–Fri 09:00–18:00, Sat 10:00–14:00, Sun closed
  • Configured to your voltage and dimensions
  • Delivery, installation and on-site commissioning
  • Factory warranty and spare parts

220 mm of cut from a 127 kg bandsaw

The HOLZMANN HBS400 is the entry machine in HOLZMANN’s floor-standing bandsaw range: 220 mm cutting height at 90°, 240 mm of cutting width at the parallel fence, 380 mm of throat and a 2950 mm blade on 400 mm wheels. At 127 kg net the HBS400 is a real cast-and-steel machine rather than a benchtop saw, but it is still light enough to move on a pallet truck and to fit a small joinery or a cabinet shop with limited floor area.

Cast-iron wheels are the reason it runs true

Cut quality on the HBS400 rests on mass in the right places. The HBS400 uses cast-iron flywheels with a rubber-coated surface, which store enough momentum to carry the blade through a knot and protect the blade set, and a massive sheet metal construction that resists flexing under tension. The 500 x 400 mm table sits at 990 mm – the highest table in this bandsaw group – and tilts 0° to 45° for bevelled cuts.

Fence and blade range

The aluminium fence guide on the HBS400 is adjusted by handwheel and gear rack and carries a scale with a fast-lock system, so repeat rips are set by reading rather than by measuring the cut. Blade width runs from 6 mm to 20 mm, which covers curve cutting and light ripping; the HBS400 is not intended for wide resaw blades. A single Ø100 mm port serves extraction, and a compact collector such as the ABS850 at 850 m³/h is a sensible match.

Choosing the HBS400

The HBS400 is driven by a 1500 W S6 (1100 W S1) motor and comes in 230V and 400V versions, so it installs on a domestic supply. If the shop regularly resaws boards deeper than 220 mm, the HBS470PROFI or HBS610 is the correct machine and the HBS400 will frustrate; within its capacity the HBS400 is the cheapest route into a proper floor-standing bandsaw.

Key specifications

  • 220 mm cutting height at 90°, 240 mm cutting width at the parallel fence, 380 mm throat
  • 400 mm cast-iron flywheels with rubber-coated surface for momentum and blade protection
  • 2950 mm saw bands from 6 mm to 20 mm wide
  • 1500 W S6 (1100 W S1) motor, available in 230V and 400V versions
  • Massive sheet metal construction for high stability
  • Aluminium fence guide adjusted by handwheel and gear rack, with scale and fast-lock system
  • 500 x 400 mm table at 990 mm height, tilting 0° to 45°
  • Ø100 mm dust collector port; 127 kg net weight

Technical specifications

Max. cutting height at 90°
220 mm
Max. cutting width at parallel fence
240 mm
Outreach (throat depth)
380 mm
Flywheel diameter
400 mm
Saw band length
2950 mm
Saw band width
6-20 mm
Table size
500 x 400 mm
Table height
990 mm
Swivel range
0° - 45°
Motor power S6
1500 W
Motor power S1
1100 W
Voltage
230V (400V variant also available)
Dust collector port
100 mm
Net weight
127 kg
Gross weight
137 kg
Packaging (L x W x H)
1760 x 600 x 480 mm
EAN code (HBS400_230V)
9120039902975
EAN code (HBS400_400V)
9120039900285

Benefits

  • Cast-iron flywheels and a heavy sheet metal body give the HBS400 stability that benchtop bandsaws cannot match at this size
  • 127 kg and a 230V option mean the HBS400 installs in almost any small workshop without electrical or handling work
  • Fence with scale and fast-lock system makes repeat rips quick to set without measuring each cut

Worth noting

  • 220 mm cutting height and 240 mm fence width are the smallest in this bandsaw group - resawing capacity is limited
  • Maximum blade width of 20 mm rules out heavy resaw blades
  • Single blade speed and a single Ø100 mm port, where the HBS470PROFI offers two speeds and two ports

Frequently asked questions

How much does the HOLZMANN HBS400 cost?
The HOLZMANN HBS400 is supplied on quotation rather than at a published shelf price. The price of the HBS400 is driven by the voltage version chosen (230V or 400V), the saw band package ordered in the 6-20 mm range, the extractor and Ø100 mm hose specified with it, freight and customs on a 137 kg crate from Austria to Georgia, and whether delivery to the workshop floor is included. Send your supply details and delivery address for an itemised offer.
Should I order the HBS400 in 230V or 400V?
Order the 230V version of the HBS400 for a workshop on a single-phase supply, which is the usual case for a machine of this size, and the 400V version only where three-phase is already installed and the saw will run alongside other three-phase machines. The 1500 W S6 motor and all capacity figures for the HBS400 are the same in both versions.
What is the lead time for a HOLZMANN HBS400?
The HBS400 is imported to order from HOLZMANN in Austria, so lead time is factory availability plus shipping and customs clearance into Georgia. HOLZMANN currently lists this model as unavailable on its own webshop, so the availability of the HBS400 must be confirmed with the factory before a delivery date is agreed - request that confirmation together with your quote.
Does the HBS400 need installation?
The HBS400 needs very little installation: at 127 kg net it is positioned by two people or a pallet truck, stood on a level floor and levelled so the blade tracks true, and the Ø100 mm port connected to an extractor. The 230V version of the HBS400 plugs into an ordinary single-phase circuit; the 400V version requires a three-phase connection by a qualified electrician with a rotation-direction check.
What consumables should I budget for with the HBS400?
Budget for saw bands with the HBS400: the machine takes 2950 mm blades from 6 to 20 mm wide, and a narrow blade for curves plus a wider one for ripping should be on the first order, with spares. Also budget for blade guide wear parts, Ø100 mm hose and a clamp, and a compact extractor such as the ABS850. Blade replacement is the main recurring cost of running the HBS400.
How deep can the HBS400 actually cut?
The HBS400 cuts up to 220 mm high at 90° and up to 240 mm wide at the parallel fence, with 380 mm of throat depth for larger workpieces. If work regularly exceeds 220 mm in depth, the HBS400 is the wrong machine and the HBS470PROFI at 285 mm or the HBS610 at 300 mm should be specified instead.
