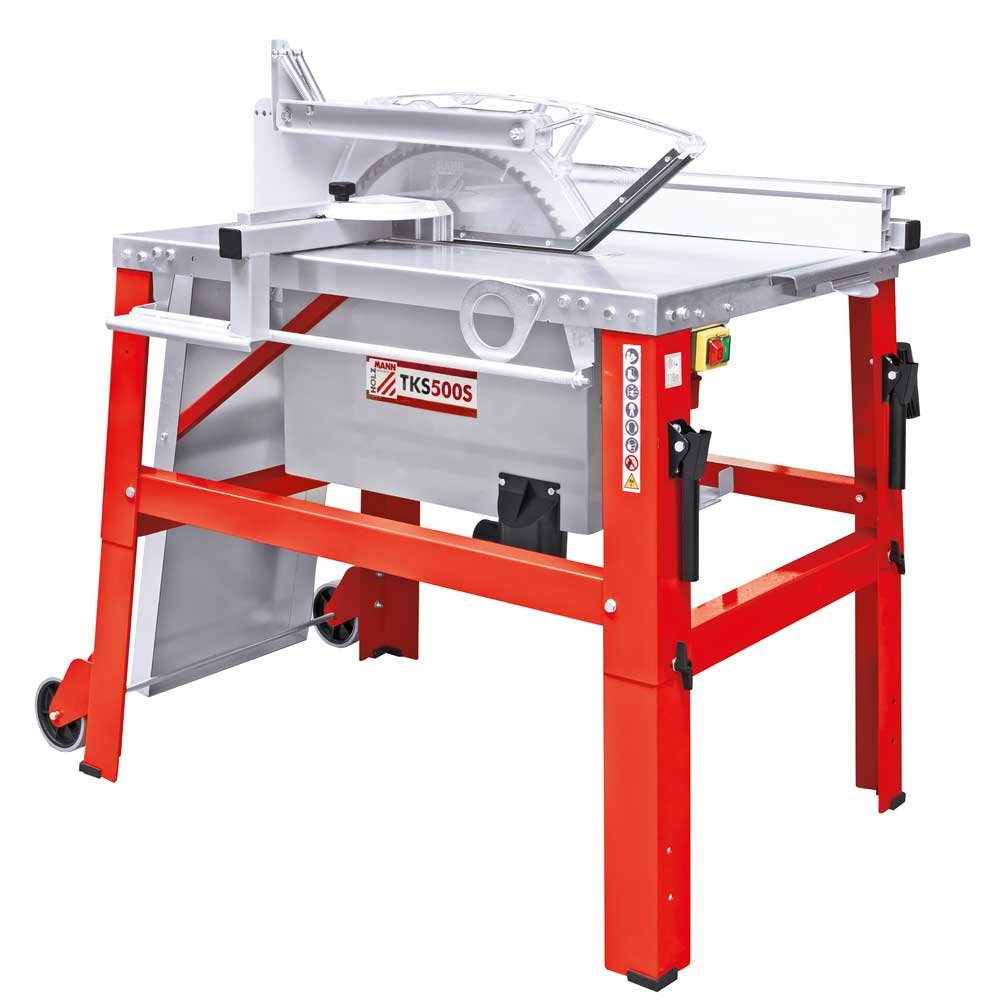

HOLZMANN TKS500S Site Table Saw – 500 mm Blade, 150 mm Cut

HOLZMANN TKS500S Site Table Saw – 500 mm Blade, 150 mm Cut

Cutting height is what sets the TKS500S apart from the rest of this group: 150 mm at 90 degrees, taken by a 500 mm TCT blade at 2800 min-1. A 4200 W S6 motor on 400 V drives it, the 1000 x 660 mm table gains a foldable 800 x 400 mm extension, and all 96 kg rolls on its own wheels.

Table Size
1000 x 660 mm
Table Height
850 mm
Overall dimensions
1075 x 790 x 1035 mm
Cutting Height
150 mm
  • New
  • To order
Price To order

TKS500S pricing moves on the fixed 400 V build with its CEE plug and phase changing switch, freight and customs clearance on a 119 kg crate measuring 1285 x 825 x 610 mm, the number of units on the order, and any spare 500 mm TCT blades or an extraction unit taken alongside.

Request price
+995 577 44 44 34
Irakli Sales manager Mon–Fri 09:00–18:00, Sat 10:00–14:00, Sun closed
  • Configured to your voltage and dimensions
  • Delivery, installation and on-site commissioning
  • Factory warranty and spare parts

Site saw with 150 mm cutting height

The HOLZMANN TKS500S is a robust circular table saw for construction site use, built around a 500 mm TCT saw blade that gives 150 mm of cutting height at 90 degrees. The blade turns at 2800 rpm behind a 4200 W S6 motor on 400 V three-phase power, and the 1000 x 660 mm table at 850 mm working height is enlarged by a foldable 800 x 400 mm extension for supporting longer stock. Folded down, the TKS500S measures 1075 x 790 x 1035 mm.

Why the TKS500S is a site machine, not a panel saw

The TKS500S is designed for beams, boards, formwork timber and construction-length stock rather than furniture panel. Maximum rip width at the parallel fence is 310 mm, so the TKS500S is deliberately not a sheet-cutting machine; what it offers instead is depth – 150 mm in a single pass – in a package of 96 kg net that folds down and rolls on its own handles and wheels for short distances around a site. That combination of deep cut and low weight is the whole point of the TKS500S.

Fences, safety equipment and noise

The TKS500S is equipped with a cross-cutting and mitre gauge that has an integrated wedge cutting gauge, plus a rip fence support, so angled and wedge cuts are made with the workpiece guided rather than held free-hand. The declared sound power level of the TKS500S is 110 dB(A), which is high even for a site saw, so hearing protection is mandatory whenever the machine runs.

What is included with the TKS500S

The TKS500S is delivered with one TCT saw blade of Ø500 x 30 x 4 mm with 44 teeth, a push stick, a sliding wood, the tool for changing the saw blade, and a CEE plug with a phase changing switch – genuinely useful on Georgian sites where the rotation direction of a temporary three-phase supply cannot be assumed and has to be corrected at the plug. A Ø100 mm extraction port is fitted to the TKS500S, but the dust collector itself is a separate purchase.

Key specifications

  • 150 mm cutting height at 90 degrees - the deepest cut in this HOLZMANN table-saw group
  • Runs a 500 x 30 x 4 mm 44-tooth TCT saw blade at 2800 min-1
  • 4200 W S6 motor on 400 V / 50 Hz, delivered with a CEE plug and phase changing switch
  • 1000 x 660 mm table at 850 mm working height plus a foldable 800 x 400 mm extension
  • 310 mm rip width at the parallel fence - sized for thick timber rather than wide boards
  • Cross-cutting and mitre gauge with integrated wedge cutting gauge, plus rip fence support
  • Transport handles and wheels move the 96 kg saw short distances across a site
  • Declared sound power level 110 dB(A); dust port Ø100 mm, extraction not supplied

Technical specifications

Motor power S6
4200 W
Voltage
400 V / 50 Hz
Table size
1000 x 660 mm
Table height
850 mm
Table extension
800 x 400 mm
Total dimensions
1075 x 790 x 1035 mm
Max. cutting height at 90°
150 mm
Max. cutting width at parallel fence
310 mm
Saw blade
500 mm (30 mm bore)
Saw blade speed
2800 min-1
Dust collector port
Ø100 mm
Sound power level
110 dB(A)
Net weight
96 kg
Gross weight
119 kg
EAN code
9120058378188

Benefits

  • 150 mm cutting height from a 500 mm TCT blade - the deepest single-pass cut in this HOLZMANN table saw group
  • Blade, push stick, sliding wood, blade-change tool and a CEE plug with phase changing switch are all included
  • Folding table extension plus handles and wheels make the 96 kg TKS500S movable around a site

Worth noting

  • Rip width at the parallel fence is only 310 mm, so the TKS500S cannot break down wide boards or sheets
  • Three-phase 400V only, with no blade tilt for bevel cuts
  • Declared sound power level of 110 dB(A) makes hearing protection mandatory, and no dust collector is included

Frequently asked questions

What power supply does the HOLZMANN TKS500S need?
The HOLZMANN TKS500S needs a 400 V / 50 Hz three-phase supply and is not available in a 230V single-phase version, because the motor is rated 4200 W in S6 duty. The TKS500S is delivered with a CEE plug that has a phase changing switch, so the direction of rotation can be corrected on site without rewiring - important where a temporary supply or generator is used.
How deep does the TKS500S cut and how wide will it rip?
The TKS500S cuts 150 mm deep at 90 degrees with its 500 mm TCT blade, the deepest cut of any HOLZMANN table saw in this group. Rip width at the parallel fence, however, is only 310 mm. The TKS500S is therefore built for cutting thick timber to length and width, not for breaking down wide boards or sheets.
What does the TKS500S not do?
HOLZMANN publishes a 90-degree cutting height for the TKS500S (150 mm) and no bevel figure at all, so bevel capacity should be confirmed on the quotation rather than assumed in either direction. What the specification does establish is that the TKS500S rips no wider than 310 mm at the parallel fence, and that no dust collector is included for its Ø100 mm port. The TKS500S is a construction-site saw for cutting solid timber to length and width, not a furniture or panel machine.
Is the TKS500S actually portable?
The TKS500S is portable in the site sense rather than the hand-carried sense. It weighs 96 kg net, folds its 800 x 400 mm table extension away and rolls on integrated handles and wheels for short distances. Moving the TKS500S between sites needs a van and two people; for a saw one person can carry, the 25 kg HOLZMANN TK255 is the relevant machine.
What is supplied with the TKS500S?
The TKS500S is delivered with one TCT saw blade Ø500 x 30 x 4 mm with 44 teeth, a push stick, a sliding wood, the tool needed to change the saw blade, and a CEE plug with phase changing switch. A dust collector is not supplied with the TKS500S and must be ordered separately for the Ø100 mm port.
How loud is the TKS500S?
The declared sound power level of the TKS500S is 110 dB(A). That is loud even by site standards, and hearing protection must be worn by the operator and by anyone working nearby whenever the TKS500S is running.
What does a HOLZMANN TKS500S cost in Georgia?
The TKS500S is a capital machine sold by quotation, not at a shelf price. The figure is moved by the fixed 400 V build, freight and customs clearance on a 119 kg crate, the number of TKS500S units on the order, and extras such as spare Ø500 x 30 mm TCT blades or the extraction unit its Ø100 mm port requires. Send us the quantity and the delivery point and we will price the TKS500S against them.
How long does it take to get a TKS500S?
The TKS500S is built to order, and the current lead time for the TKS500S is confirmed at quotation rather than published in advance. Ask when you enquire and we will state the position at that moment, including transit to your site in Georgia.
What is involved in commissioning a TKS500S on site?
Commissioning a TKS500S means levelling it on firm ground, having a qualified electrician terminate the 400 V three-phase supply through the supplied CEE plug, using the phase changing switch to set correct blade rotation, and connecting the Ø100 mm port to extraction. We quote installation and handover for the TKS500S as separate lines so the cost is visible before you commit.
What should I budget for beyond the TKS500S itself?
Beyond the TKS500S machine price, budget for an extraction unit - none is supplied for the Ø100 mm port - for replacement Ø500 x 30 mm TCT blades as the supplied 44-tooth blade wears, and for hearing protection given the declared 110 dB(A) sound power level. Handling a 96 kg saw off the vehicle also needs two people or a pallet truck.
